Overview

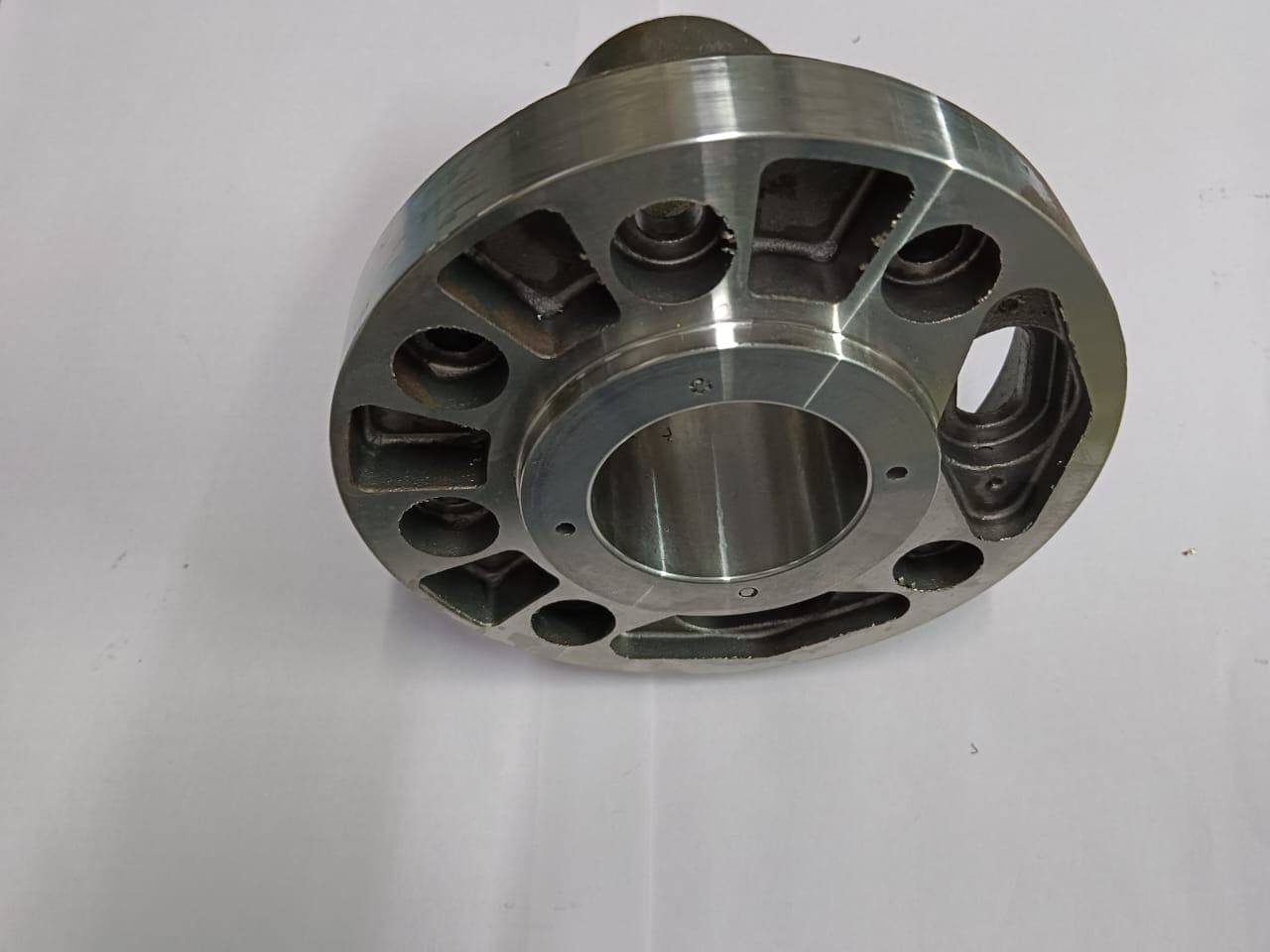

The V6 upper bracket closes the top end of a 6-inch submersible motor. It carries the upper bearing or bush that supports the motor shaft, provides the bolt holes for joining the motor to the pump end, and has cored pockets that save weight while keeping the bracket rigid.
The bracket is cast and then machined on its faces, bearing bore and bolt holes. Accurate machining here is critical, because the upper bracket sets how well the motor shaft lines up with the pump shaft through the coupling.
The upper bracket works together with the V6 lower bracket and the motor body. When all three are machined to matching dimensions, the rotor runs centred in the stator and the shaft meets the pump coupling squarely. We can supply the upper bracket on its own for repairs or in matched quantities for new motor production.
Key Features
- Machined central bore for bearing or bush
- Bolt holes for motor-to-pump assembly
- Cored pockets for reduced weight with good rigidity
- Machined mating faces for square assembly
- Designed for V6 (6-inch) submersible motors
Specifications
| Attribute | Details |
|---|
| Product | V6 Upper Bracket (motor top end) |
| Pump Size / Compatibility | V6 (6-inch) borewell submersible motors |
| Finish | Cast and CNC machined |
| Customisation | Available on request (OEM) |
| Manufacturer | Shree Gelma Industries, Rajkot, Gujarat, India |
Applications
- Manufacturing of 6-inch submersible motors
- Replacement brackets in motor repair and rewinding
- OEM supply to motor and pump assemblers
Why Choose Shree Gelma Industries
Brackets set the alignment of the whole motor. We machine the bore and faces in a controlled set-up so that every bracket in a batch fits the same way.
- Manufacturing submersible pump parts in Rajkot, Gujarat since 2003
- In-house CNC machining for consistent, repeatable dimensions
- OEM, custom manufacturing and job work to your drawing or sample
- Supply to pump manufacturers, assemblers and dealers across India
Frequently Asked Questions
Do you make the matching lower bracket?
Yes. See our V6 Lower Bracket, which is made to pair with this part.
Can you machine to my bolt pattern?
Yes, for OEM orders we can machine to your drawing. Contact us with the details.
