Overview

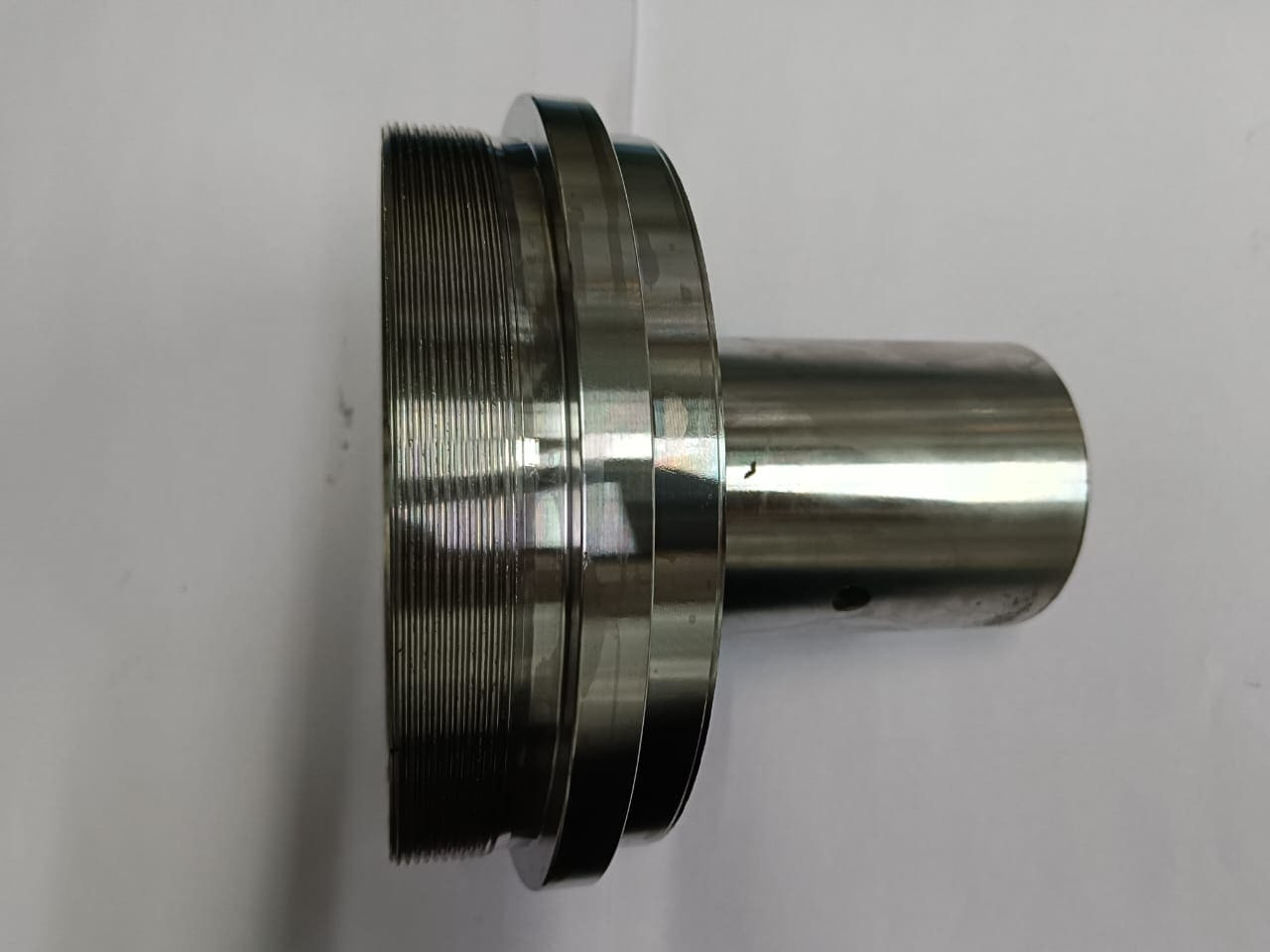

The V6 lower bracket forms the bottom end of a 6-inch submersible motor. It screws into the motor body on its large external thread, seals against the body with machined shoulders, and carries the lower bearing in its extended boss. Together with the upper bracket, it keeps the rotor centred in the stator.
Thread quality matters on this part. A clean, full thread and a square shoulder help the bracket seat properly and hold its seal, which is why we machine the thread, shoulders and bore on CNC equipment.
The lower bracket also takes the weight and end-loads at the bottom of the motor, so a sound bearing seat is important. We machine the bore and the thread on CNC equipment to keep the fit consistent from one order to the next.
Key Features
- Large machined external thread for motor body assembly
- Stepped shoulders for sealing and location
- Extended bearing boss with machined bore
- Bright machined finish on functional surfaces
- Designed for V6 (6-inch) submersible motors
Specifications
| Attribute | Details |
|---|
| Product | V6 Lower Bracket (motor bottom end) |
| Pump Size / Compatibility | V6 (6-inch) borewell submersible motors |
| Finish | CNC machined |
| Customisation | Available on request (OEM) |
| Manufacturer | Shree Gelma Industries, Rajkot, Gujarat, India |
Applications
- Manufacturing of 6-inch submersible motors
- Replacement brackets for motor overhaul
- OEM supply to motor manufacturers
Why Choose Shree Gelma Industries
Threaded brackets must screw in smoothly and seal reliably. We machine threads and shoulders to your specification for a clean assembly.
- Manufacturing submersible pump parts in Rajkot, Gujarat since 2003
- In-house CNC machining for consistent, repeatable dimensions
- OEM, custom manufacturing and job work to your drawing or sample
- Supply to pump manufacturers, assemblers and dealers across India
Frequently Asked Questions
Is this bracket threaded or bolted?
This lower bracket has a large external thread that screws into the motor body. Contact us if you need a different arrangement.
Is there a matching upper bracket?
Yes, see our V6 Upper Bracket.
